JQX-115F-012-1H
Giá: 33.000₫ Còn hàng

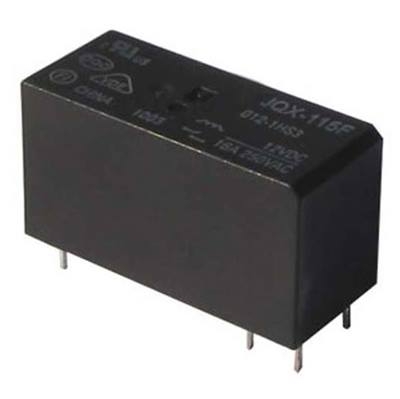

Power relay 12V coil 16A 250VAC Load JQX-115F-I 012-1H3A
Power relay 12V coil 16A 250VAC Load JQX-115F-I 012-1H3A
Contact Type: 1A (1 Form A-SPST)
Contact Resistance: 100mΩ max.(at 1A 6VDC)
Contact Rating: 16A 250VAC
Max. switching Voltage: 440VAC / 125VDC
Max. switching Current: 16A
Max. switching Power:2000VA
Characteristics Insulation Resistance:1000MΩ(500VDC)
Dielectric Strength: Between coil & contacts 5000VAC 1min
Between open contacts 1000VAC 1min
