HC-12 433MHz

Giá: 115.000₫ Còn hàng

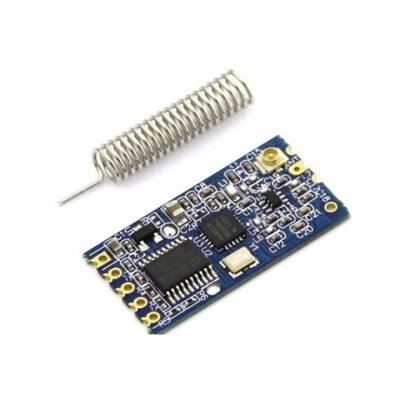

433Mhz Serial RF Module

Long-distance wireless transmission (1,000m in open space/baud rate 5,000bps in the air)
Working frequency: 433.4MHz to 473.0MHz,
Supply voltage: 3.2V to 5.5VDC
Communication distance: 1,000m in the open space
Serial baud rate: 1.2Kbps to 115.2Kbps(default 9.6Kbps)
Receiving sensitivity: -117dBm to -100dBm
Transmit power: -1dBm to 20dBm
Interface protocol: UART/TTL
Operating temperature: -40℃ to +85℃

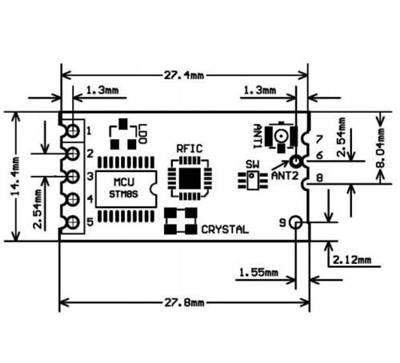

Dimensions: 27.8mm x 14.4mm x 4mm

Ứng dụng sản phẩm
