Mạch Thu Phát RF GT-38 UART

88.000₫ Giá cũ:

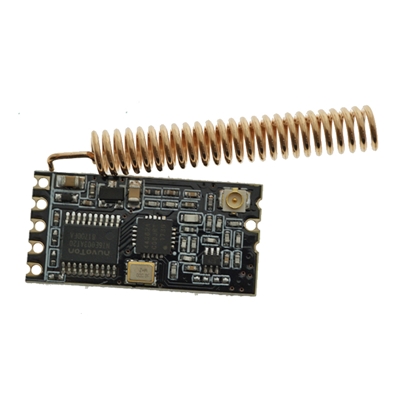

Mạch Thu Phát RF GT-38 UART GT-38 wireless single-chip serial port module UART interface for SI4438/4463B8N8

Gọi ngay 0932 762514 để được giải đáp mọi thắc mắc

Thanh Toán Tiền mặt Hoặc Chuyển Khoản

Giao Hàng Theo Yêu Cầu

Đặt Hàng Theo Yêu Cầu

Thông tin sản phẩm
Hướng dẫn

Loại	Mạch Thu Phát RF GT-38 UART
Điện Áp Sử Dụng	3.3-5.5Vdc
Dải Tần Số	433-458.5MHz
Giao Tiếp	TX, RX (UART/TTL,)
Công Suất	20dBm, 1200 mét
Sử Dụng Chíp	SI4438
Quy Cách	Thu Và Phát Dữ Liệu Không Dây Bằng Sóng RF
Kich Thước Mạch	26.7 x 12.9 x 0.6mm

GT-38 wireless single-chip serial port module UART interface for SI4438/4463B8N8
Long-distance wireless transmission (opening 1200 m / FU4 mode, air baud rate 1000bps)
Operating frequency range (433-458.5MHz, up to 255 communication channels)
Maximum 100mW (20dBm) transmit power (8-speed power can be set)
Four working modes to suit different applications.Built-in MCU for communication via serial port and external devices
The number of bytes sent at one time is up to 256 bytes.Module supports one-to-one, one-to-many, many-to-many connections
model GT-38
Module size 26.7 x 12.9 x 0.6mm
Chip solution SI4438
Working frequency 433-458.5MHz
Communication Interface UART 3.3V/5V
TTL Antenna interface Spring antenna / antenna socket
Operating Voltage 3.2-5.5V
Sleep current No sleep mode
Communication level 3.3V/5V
Working humidity 10-90 percent
Transmit power 20dBm(MAX)
Operating temperature -25 Celsius +75 Celsius
Reference distance 1200m storage temperature -40 Celsius +85 Celsius
colour:Black
