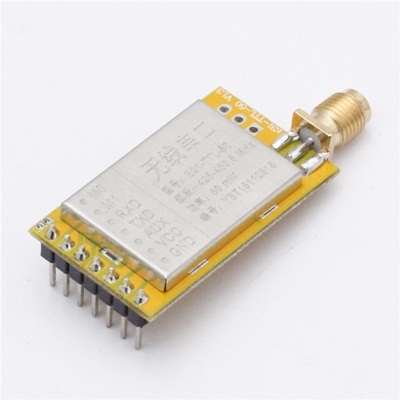

Mạch Thu Phát RF E31-TTL-50

185.000₫ Giá cũ:

Wireless Transmitter and Receiver E31-TTL-50 UART 50 mW 433 MHz 50 mW 2.1 km RF

Gọi ngay 0932 762514 để được giải đáp mọi thắc mắc

Thanh Toán Tiền mặt Hoặc Chuyển Khoản

Giao Hàng Theo Yêu Cầu

Đặt Hàng Theo Yêu Cầu

Thông tin sản phẩm
Hướng dẫn

Loại	Mạch Thu Phát RF E31-TTL-50
Điện Áp Sử Dụng	2.1-5.0Vdc
Dải Tần Số	425-450.5 MHz (Mặc Định 433 MHz)
Giao Tiếp	TX, RX (UART/TTL,)
Công Suất	50 mW 2100 mét
Sử Dụng Chíp
Quy Cách	Thu Và Phát Dữ Liệu Không Dây Bằng Sóng RF
Kich Thước Mạch	21 x 36 x 7mm

1. Model: E31-TTL-50
Type 2. Interface: UART
3. Frequency of Operation: 433 MHz (425-450.5 MHz)
electricity 4. Transmit: 50 mW
5. Communication Distance: m 2100 (max)
size 1. Module: 21 * 36 meters,
2. Frequency of operation: 425-450.5 MHz (default 433 MHz)
3. Interface pins: 1 * 7 * 2.54 meters
4. Operating voltage: 2.1V-5.5VDC
5. Communication level: V 5.2 (max)
electricity 6. Transmit: 17dBm (about 50 mW)
7. Found Distance: 2100 m (max)
8. Air Speed: 1.2Kbps-70 Kbps (default 1.2 Kbps)
9. Current Emission: 55mA @ 17dBm
10. Receive Current: 12.5mA @ Mode 0, 1
11. Sleeping Current: 1.7uA (M0 = 1, M1 = 1)
12. Communication Communication: UART
13. drive mode: UART
14. Longitudinal Transmitter: 512 bytes
15. Address Function: Configure 65,536 addresses
16. antenna Interface: SMD
17. Sensitive Receiver: -126dBm / 1.2 Kbps
18. Working temperature: -40 ~ 85 Centigrade
19. humidity: 10% to 90%
20. Storage temperature: -40 ~ 125c.
