APC250-S
Giá: 330.000₫ Còn hàng

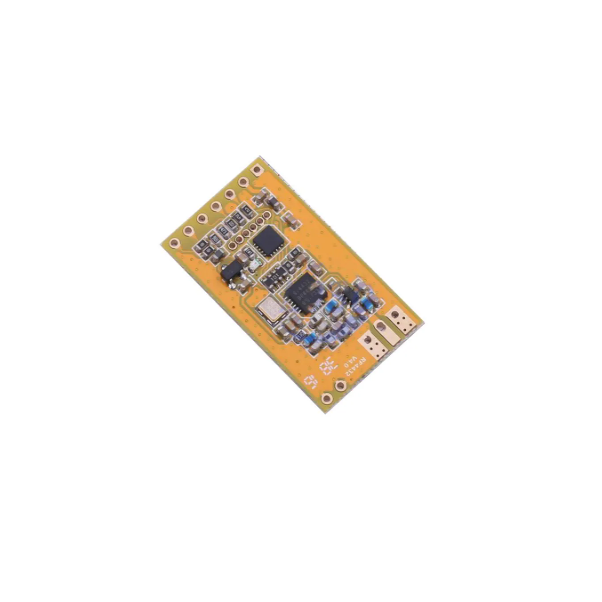

Module RF4432 APC250 V4.0 Transceiver
APC250-S:
-Outdoor covers up to 1800meters(9600bps)
-Frequency range 410-440MHz,470-510MHz, 850-890MHz
-0.2MHz channel spacing
-SILICON LABS SI4432 RFIC
-Output power: 100mW(adjustable)
-Optional interface of UART/TTL, RS232, RS485
-Outstanding receiver sensitivity -113dBm@9600bps
-High efficiency forward error correction with interleaving encoding
-GFSK modulation
-Main parameters can be changed by APPCON RF module software
-2x 256 Bytes data buffer
-Power supply with voltage +3.4 ~ 5.5V
-Power consumption:RX current:20mA,Tx current: 100mA
-Operating temperature:-30℃ to 85℃
-Size:32.1*18.3*7.0(mm)
