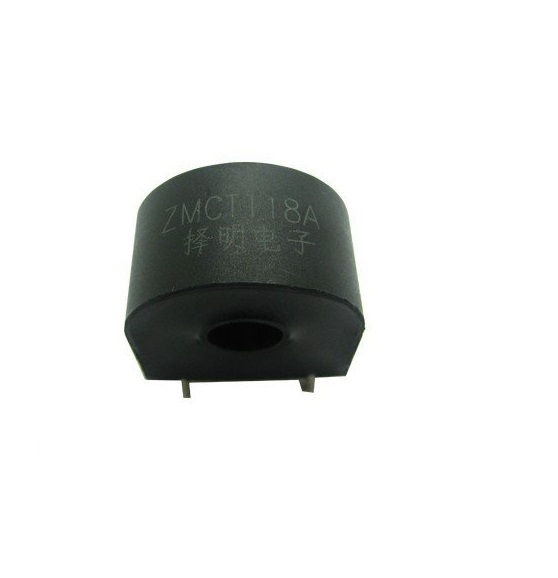

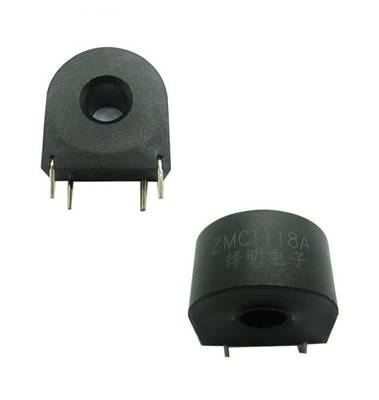

Cảm Biến Dòng ZMCT118A 5A

Giá: 12.500₫ Còn hàng

Cảm Biến Dòng ZMCT118A 5A Zmct118A Ultramicro PCB Mounting Current Transformer

model    ZMCT118A
Rated input current    5A
Rated output current    2.5mA
turns ratio    2000:1
phase angle error    ≤15'(input 5A,sampling resistor 50Ω)
linear range    0~40A(sampling resistor 50Ω)
linearity    ≤0.1%(5%dot~120%dot)
Permissible error    -0.2%≤f≤+0.2%(input 5A,sampling resistor 50Ω)
isolation voltage    4500V
application    Current and power measurement
Encapsulation    Epoxy
installation    PCB mounting(Pin length>3mm)
operating temperature    -40ºC~+85ºC
