ZMCT103C

Giá: 8.500₫ Còn hàng

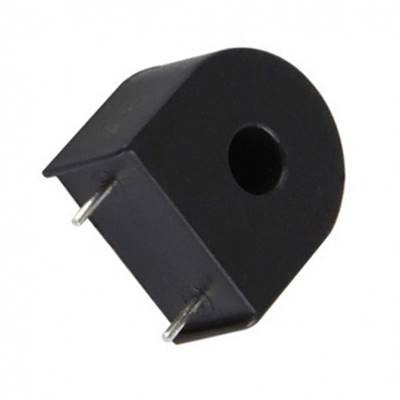

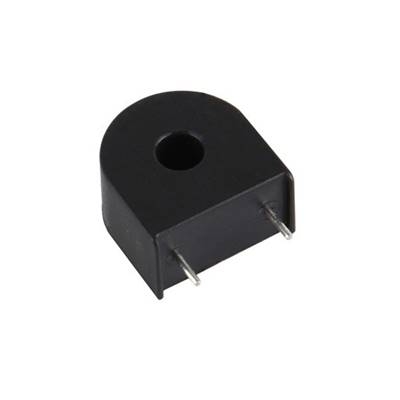

ZMCT103C 5A Current Transformer

model    ZMCT103C
Rated input current    5A
Rated output current    5mA
turns ratio    1000:1
phase angle error    ≤15' (input 5A,sampling resistor 50Ω)
linear range    0~10A(sampling resistor 50Ω)
linearity    ≤0.2%(5%dot~120%dot)
Permissible error    -0.2%≤f≤+0.2% (input 5A,sampling resistor50Ω)
isolation voltage    4500V
application    Precise measurement of current and power
Encapsulation    Epoxy
installation    PCB mounting(Pin Length>3mm)
operating temperature    -40ºC~+85ºC
