LED 0603 Green

Giá: 450₫ Còn hàng

Red 570nm LED Indication - Discrete 2V 0603 (1608 Metric)

Red 570nm LED Indication - Discrete 2V 0603 (1608 Metric)
Color    Red
Wavelength - Dominant                               570nm
Wavelength - Peak                                       570nm
Millicandela Rating                                       2.6mcd
Voltage - Forward (Vf) (Typ)                       1.8V
Current - Test                                               2mA
Viewing Angle    -
Lens Type                                               Clear
Lens Style/Size    Rectangle with Flat Top, 1.2mm x 0.8mm

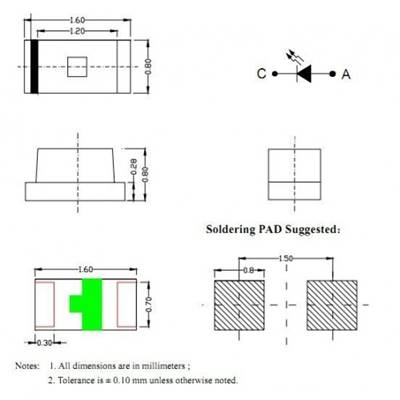

Package / Case                                      0603 (1608 Metric)
Size / Dimension                                      1.60mm L x 0.80mm W
Height                                                      0.80mm
