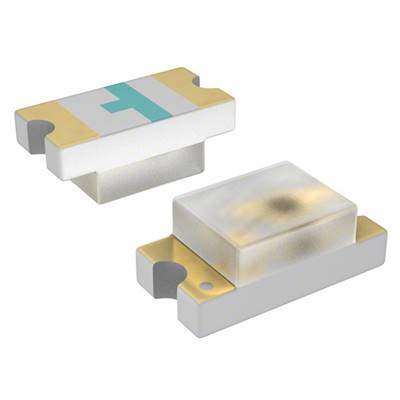

LED 0603 Blue

Giá: 450₫ Còn hàng

Blue 470nm LED Indication - Discrete 2.8V 0603 (1608 Metric)

Blue 470nm LED Indication - Discrete 2.8V 0603 (1608 Metric)
Color    Blue
Wavelength - Dominant                               470nm
Wavelength - Peak                                       470nm
Millicandela Rating                                       2.9mcd
Voltage - Forward (Vf) (Typ)                       2.8V
Current - Test                                               2mA
Viewing Angle    -
Lens Type                                               Clear

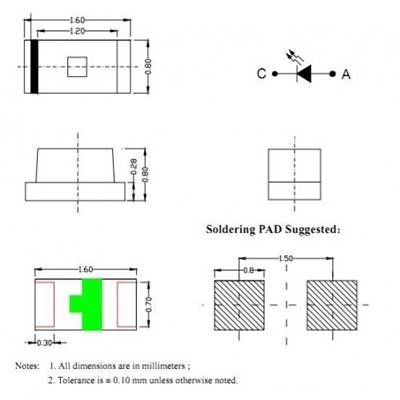

Lens Style/Size    Rectangle with Flat Top, 1.2mm x 0.8mm
Package / Case                                      0603 (1608 Metric)
Size / Dimension                                      1.60mm L x 0.80mm W
Height                                                      0.80mm
