Uart-WIFI HLK-RM04

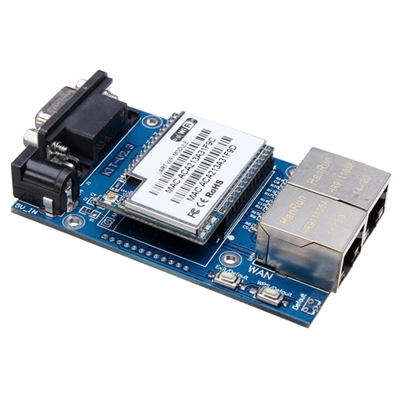

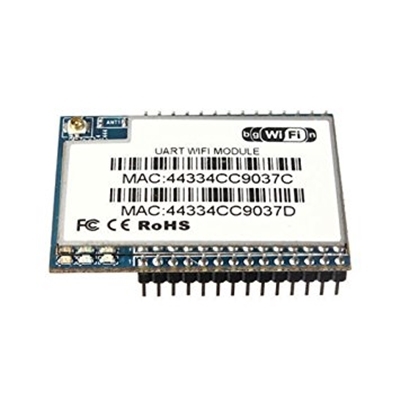

HI-LINK HLK-RM04 Serial Port-Ethernet-Wi-Fi Adapter Module
- Brand: HI-LINK
- Quantity: 1
- Color: Blue + black
- Material: FR4
- Technical Specifications:
- Network standard: Wireless: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b; Wired: IEEE 802.3, IEEE 802.3u
- Wireless transmission rate: 11n: maximum up to 150Mbps; 11g: maximum up to 54Mbps; 11b: maximum up to 11Mbps
- Tracks number: 1~14
- Frequency range: 2.4~2.4835GHz
- Emission power: 12~15dBm
- Antenna type: Onboard antenna / External antenna
- Functional Parameters:
- Wi-Fi work mode: Client / AP / Router
- WDS Function: Supports WDS wireless bridge connection
- Wireless security: Wireless MAC address filtering; Wireless security function switch; 64 / 128 / 152 bit WEP encryption; WPA-PSK / WPA2-PSKWPA / WPA2 security mechanism
- Network management: Remote Web management; Configuration file import and export; WEB software upgrade
- Serial to Network:
- Maximum transmission rate: 230400bps
- TCP connection: Max. connection number>20
- UDP connection: Max. connection number>20
- Serial baud rate: 50~230400bps
- Other Parameters:
- Status indicator: Status indicator
- Environmental standard:
- Operating temperature: -20'C~+70'C
- Operating humidity: 10%~90% RH no condensing
- Storage temperature: -40'C~80'C
- Storage humidity: 5%~90% RH no condensing
- Additional properties: Frequency bandwidth optional: 20MHz~40MHz automatically
- The range of baud rate: 1200~500000bps
- Supports transparent transmission mode
- Supports wireless roam
- Supports multiple network protocols: PPPOE / TCP / UDP / DDDNS / DHCP / DNS / HTTP / Firewire
- Supports AT+ instruction set
- Supports two config methods: Serial / WEB
