ERC12864SBSF-2

Giá: 150.000₫ Còn hàng

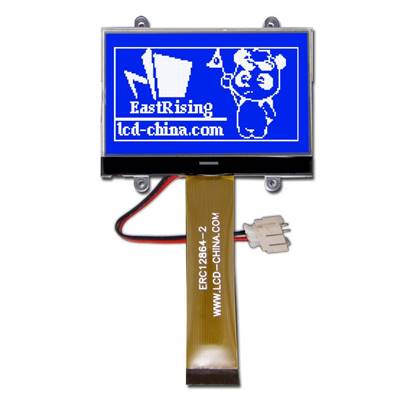

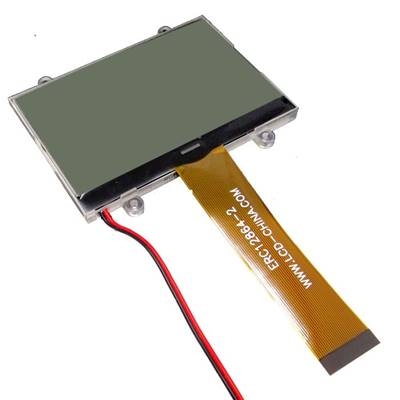

2.6 inch 128x64 COG LCD Module display,serial spi,white Blue

2.6 inch 128x64 COG LCD Module display,serial spi,white Blue
Display Format     128x64 Dots
Interface     6800 8-bit Parallel , 8080 8-bit Parallel , 4-Wire Serial SPI
IC or Equivalent     NT7532 , NT7538 , SPLC501 , ST7565
Appearance     White on Blue
Diagonal Size     2.6“
Connection     FPC-Connector
Outline Dimension     69.54(W)x58.0(H)x5.0(T)mm
Visual Area     64.50x37.00mm
Active Area     59.49(W)x29.73(H)mm
Dot (Pixel) Size     0.435x0.435mm
Dot (Pixel) Pitch     0.465x0.465mm
IC Package     COG
Display Type     STN-LCD Blue
Viewing Direction     6:00
Viewing Angle Range     No
Brightness(Typ)     No
Backlight Color     White Color
Backlight Current (Typ)     75mA
Power Supply(Typ)     3.3V
Supply Current for LCM(Max)     450uA
