ER-OLED0.96-1YB

Giá: 95.000₫ Còn hàng

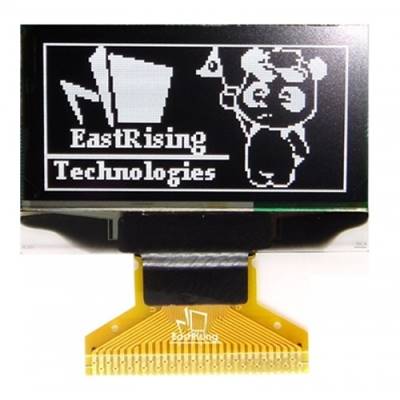

Monochrome 0.96"128x64 OLED Display Module SSD1306, Yellow

Monochrome 0.96"128x64 OLED Display Module SSD1306, Yellow
Manufacturer     EastRising
Continuity Supply     We promise the long term continuity supply for this product no less than 10 years since 2015.
Part Number     ER-OLED0.96-1YB
Display Format     128x64 Dots
Interface     6800 8-bit Parallel , 8080 8-bit Parallel , I2C, 3-Wire Serial SPI, 4-Wire Serial SPI
IC or Equivalent     SSD1306
Appearance     Blue+Yellow on Black
Diagonal Size     0.96“
Connection     FPC-Soldering
Outline Dimension     26.70(W)x19.26(H)x1.45(T)mm
Visual Area     23.74x12.86mm
Active Area     21.744(W)x10.864(H)mm
Character Size     No
Dot (Pixel) Size     0.154x0.154mm
Dot (Pixel) Pitch     0.17x0.17mm
IC Package     COG
Display Type     OLED
Touch Panel Optional     No
Sunlight Readable     No
Response Time(Typ)     No
Contrast Ratio(Typ)     2000:1
Colors     No
Viewing Direction     No
Viewing Angle Range     Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree
Brightness(Typ)     120cd/m2
Backlight Color     No
Backlight Current (Typ)     No
Power Supply(Typ)     2.8V
Supply Current for LCM(Max)     No
Operating Temperature     -30℃~70℃
Storage Temperature     -40℃~80℃
Series Number     ER-OLED0.96-1

     data sheet
