Mạch Đóng Ngắt Relay 24v Hiển Thị LED

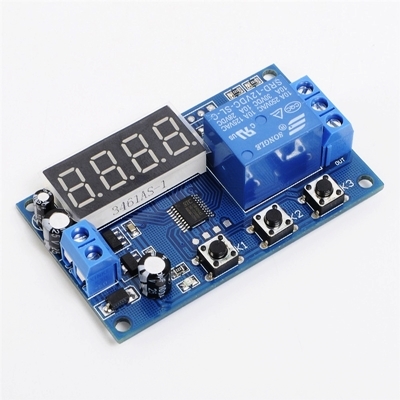

Delay timer switch 24V The relay module Reciprocating automatic cycle With LED display
This product is the result of more than two years of experience and accumulated user requirements developed one of the most convenient and most cost-effective and practical timer.
Increase power anti-reverse function.
Inputs and outputs are opto isolated, enhanced anti-jamming capability power.
Ensure stability, industrial grade board. After setting the parameters of power and can never remember.
Increase in power-saving mode, a key switch, a permanent power.
Relay load: AC 220V10A / DC30V10A.
Quiescent Current: 20mA.
Operating Current: 50mA.
Supply voltage: 24V.
Signal voltage: 10-30v!
Time: 0 to 999.9 sec / 0 to 9999 sec / 0 to 9999 minutes.
Life: more than 10 million times.
Operating temperature: -40 ℃ ~ 85 ℃.
Size:64.5*39*18.5mm(L*W*H).
Weight:26.2g/0.93oz.
Operating mode:
P-1: On-delay ON;
P-2: Disconnect the power delay;
P-3: power on-off cycle.
(Infinite loop or can be fixed cycles)

P1-3 operating modes: ON X, off Y, given once or infinite loop. Users can set the relay time X, Y; click K2 one thousand digital start flashing, then press K3, one thousand the number of changes; click K2 one hundred digit LED starts flashing, then press K3 , one hundred digital change; so, first set turned X time, then set off Y time last set number of times, until you press K2, digital does not blink, then press the K3, shift the decimal point, the decimal point in a bit indicates 0-9999 minutes at 10 bit from 0 to 999.9 seconds without a decimal point represent 0-9999 seconds; after selection, thus the time setting is completed. (Note: the number of times of 0, on behalf of an infinite loop).
