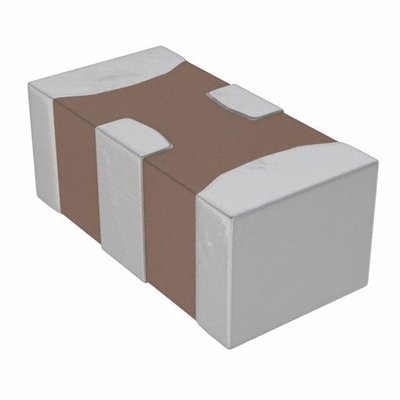

YFF31PC1C105MT000N Filter for power line
Giá: 2.800₫ Còn hàng
Feedthrough filter for power line 16V 2A 1206 (3216 Metric)
Feedthrough filter for power line 16V 2A 1206 (3216 Metric)
1µF Feed Through Capacitor 16V 2A 40 mOhm 1206 (3216 Metric)
Part Status Active
Capacitance 1µF
Tolerance ±20%
Voltage - Rated 16V
Current 2A
DC Resistance (DCR) (Max) 40 mOhm
Operating Temperature -55°C ~ 125°C
Insertion Loss 40dB @ 700kHz ~ 1GHz
Temperature Coefficient -
Ratings -
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric), 4 PC Pad
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
