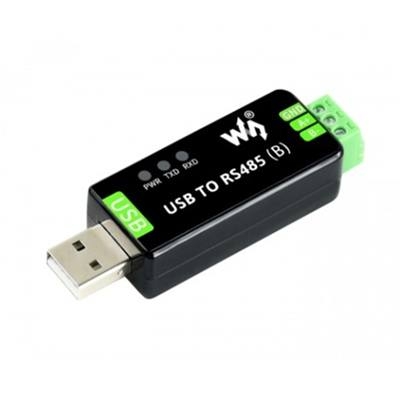

USB TO RS485 - B CH340 WVS

210.000₫

USB TO RS485 - B CH340 WVS Communication Module Bidirectional Half-Duplex Serial Line Converter Communication Module

Gọi ngay 0932 762514 để được giải đáp mọi thắc mắc

Thanh Toán Tiền mặt Hoặc Chuyển Khoản

Giao Hàng Theo Yêu Cầu

Đặt Hàng Theo Yêu Cầu

Thông tin sản phẩm
Hướng dẫn

Loại	Mạch Chuyển Đổi USB TO RS485 - B CH340 WVS
IC	CH340
Điện Áp Hoạt Động	5Vdc
Chuẩn Giao Tiếp	USB 2.0
Hổ Trợ	Windows98 / ME / 2000 / XP / WIN7 / Vista, Linux, Mac

USB to RS485/RS232 Communication Module Bidirectional Half-Duplex Serial Line Converter Communication Module

nterface pins: GND, A+ (TXD), B- (RXD)
Direction control: hardware automatically determines and controls the direction of data transmission
Interface protection: Provides 600w surge and 15KV electrostatic protection (onboard 120R balanced resistor)
Transmission distance: RS485 (about 1200 meters), RS232 (about 10 meters) at low speed
Transmission mode: point-to-multiple (up to 32 nodes, it is recommended to add a repeater RS232 for more than 16 nodes (one point-to-point interface can only connect one device, if multiple devices need to be connected, a repeater is required)
Indicator light:
PWR: Power indicator light, when connected to USB, the light turn on when voltage is detected.
TXD: Transmit indicator light, the light turns on when data is sent from the USB port.
RXD: Receiving indicator, lights up when the USB interface receives data.
USB to RS485/RS232 interface description:
GND: Peripheral connection GND
A+TXD: RS485 connects to A, RS232 connects to RXD
B-RXD: RS485 connects to B, RS232 connects to TXD
