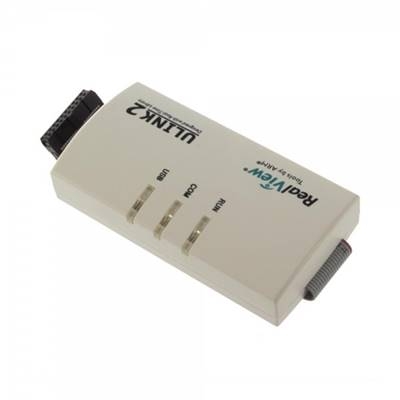

ULINK 2
Giá: 420.000₫ Còn hàng
Supports various ARM7, ARM9, Cortex-M, 8051, and C166 devices
Supports various ARM7, ARM9, Cortex-M, 8051, and C166 devices
JTAG speed up to 10MHz
Serial Wire Debug (SWD) support for ARM Cortex-M based devices
Serial Wire Viewer (SWV) Data Trace for Cortex-M up to 1Mbit/s (UART mode)
Real-Time Agent with memory R/W during execution, terminal emulation, and serial debug output
Seamless integration with the Keil µVision IDE & Debugger
Wide target voltage range: 2.7V - 5.5V
USB powered (no power supply required)
Plug-and-Play installation using standard Windows USB drivers
Target Connectors
10-pin (0.05") - Cortex Debug Connector
20-pin (0.10") - ARM Standard JTAG Connector
