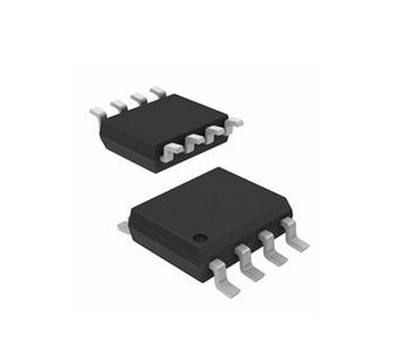

TP4056

Giá: 3.500₫ Còn hàng

Programmable Charge Current Up to 1000mA

Programmable Charge Current Up to 1000mA,

No MOSFET, Sense Resistor or Blocking Diode Required
Complete Linear Charger in SOP8
Package for Single Cell Lithium-ion Batteries Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge
 Rate Without Risk of Overheating
Charges Single Cell Li-Ion Batteries Directly from USB Port
Preset 4.2V Charge Voltage with ± 1% Accuracy
Two Charge Status Output Pin
Automatic Recharge
Soft-Start Limits Inrush Current
Available Radiator in 8-Lead SOP8
 Package,the radiator need connect GND or impending
 2.9V Trickle Charge Threshold
C/10 Charge Termination
2.9V Trickle Charge Threshold
Package / SOIC 8

​  data sheet
