SS14

Giá: 450₫ Còn hàng

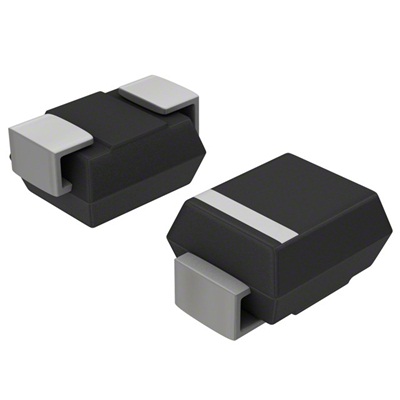

DIODE SCHOTTKY 40V 1A SMA

DIODE SCHOTTKY 40V 1A SMA,
Diode Type                                         Schottky
Voltage - DC Reverse (Vr) (Max)         40V
Current - Average Rectified (Io)         1A
Voltage - Forward (Vf) (Max) @ If         500mV @ 1A
Speed    Fast Recovery                      =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)    -
Current - Reverse Leakage @ Vr        200µA @ 40V
Capacitance @ Vr, F    -
Mounting Type    Surface Mount
Package / Case    DO-214AC, SMA

​  data sheet
