SG3526N

Buck, Flyback Regulator Positive Output Step-Down,

Step-Up/Step-Down DC-DC Controller IC 18-DIP

Output Type Transistor Driver

Function Step-Down, Step-Up/Step-Down

Output Configuration Positive

Topology Buck, Flyback

Number of Outputs 2

Output Phases 1

Voltage - Supply (Vcc/Vdd) 8 V ~ 35 V

Frequency - Switching 1Hz ~ 350kHz

Duty Cycle (Max) 49%

Synchronous Rectifier Yes

Clock Sync No

Serial Interfaces -

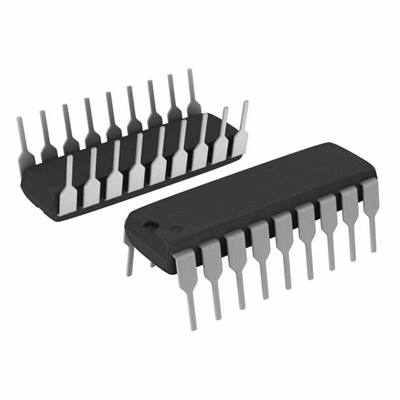

Package /  18-DIP

​
