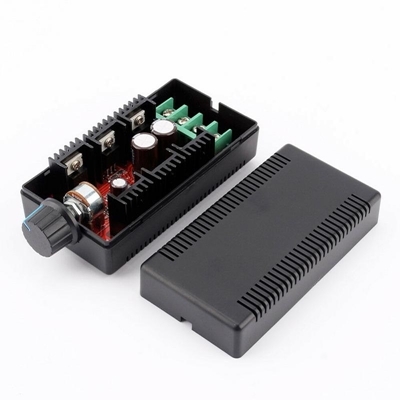

Mạch Điều Khiển Tốc Độ Động Cơ HB-1 40A

Mạch Điều Khiển Tốc Độ Động Cơ HB-1 40A

110.000₫ Giá cũ:

9-50V PWM DC Motor Controller DC Motor Speed Controller 2000W 40A Speed

Gọi ngay 0932 762514 để được giải đáp mọi thắc mắc

Thanh Toán Tiền mặt Hoặc Chuyển Khoản

Giao Hàng Theo Yêu Cầu

Đặt Hàng Theo Yêu Cầu

Thông tin sản phẩm
Hướng dẫn

Loại	Mạch Điều Khiển Tốc Độ Động Cơ HB-1 40A
Điện áp làm việc	9-50Vdc
Công Suất	2000W
Dòng tối đa	40A
Tốc Độ Động Cơ
Kích thước	90mm x 51mm x 30mm

1. Working voltage: DC 9V-50V wide working voltage range
2. Control power: 0.01-2000W (maximum instantaneous current 40A, long-term working current should be controlled within 20A) Different working voltages correspond to different control powers as follows.
When working voltage is 12V, 12V x 40A = 480W
When working voltage is 24V, 24V x 40A = 960W
When working voltage is 36V, 36V x 40A = 1440W
When working voltage is 40V, 40V x 40A = 1600W
50V x 40A = 2000W when working voltage is 50V
3. Quiescent current: 0.025A (when the working voltage is between DC10V and DC50V, the quiescent current will not exceed 25ma)
4. PWM duty cycle: 5%-100%
5. PWM frequency: 12khz
6. Working temperature: -20 - 40 (ambient temperature of minus 20 degrees to 40 degrees above zero) This governor is of industrial grade quality and can work stably in a sub-zero environment. The general commercial grade quality governor is Can not work stably below zero.

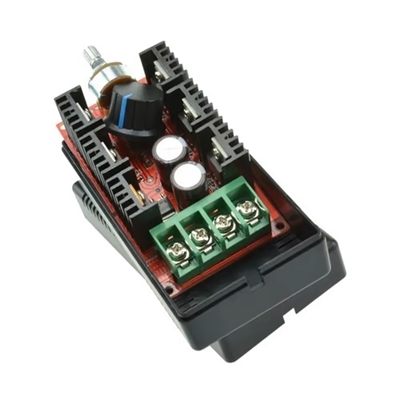

The size of the circuit board: 90 x 51 x 30mm (not including the adjustment part of the potentiometer)
