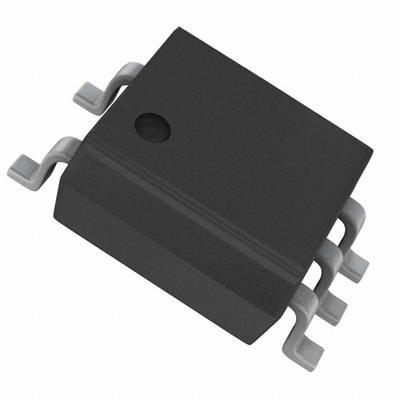

PC410L

Giá: 12.000₫ Còn hàng

PHOTOCOUPLER OPIC 5-SOP

PHOTOCOUPLER OPIC 5-SOP,

Optoisolators - Logic Output
Packaging ?     Tape & Reel (TR) ?
Number of Channels    1
Inputs - Side 1/Side 2    1/0
Voltage - Isolation    3750Vrms
Common Mode Transient Immunity (Min)    10kV/µs
Input Type    DC
Output Type    Open Collector
Current - Output / Channel    50mA
Data Rate    10Mbps
Propagation Delay tpLH / tpHL (Max)    75ns, 75ns
Rise / Fall Time (Typ)    20ns, 10ns
Voltage - Forward (Vf) (Typ)    1.6V
Current - DC Forward (If) (Max)    20mA
Voltage - Supply    4.5 V ~ 5.5 V
Mounting Type    Surface Mount
Package / 6-SOIC (0.173", 4.40mm Width) 5 Leads

  data sheet
