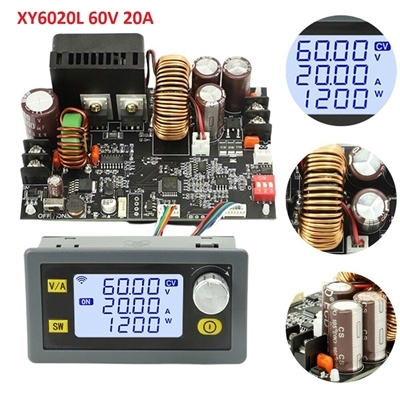

Nguồn DC Điều Chỉnh Điện Áp XY6020L 60V 20A

Nguồn DC Điều Chỉnh Điện Áp XY6020L 60V 20A

440.000₫

Gọi ngay 0932 762514 để được giải đáp mọi thắc mắc

Thanh Toán Tiền mặt Hoặc Chuyển Khoản

Giao Hàng Theo Yêu Cầu

Đặt Hàng Theo Yêu Cầu

Thông tin sản phẩm
Hướng dẫn

Loại	Nguồn DC Điều Chỉnh Điện Áp XY6020L 60V 20A
Điện Áp Vào	6 - 70Vdc
Điện Áp Ra	0 - 60Vdc
Dòng Điện Ngõ Ra	0 - 20A
Công Suất Đầu Ra	1200W
Tần Số

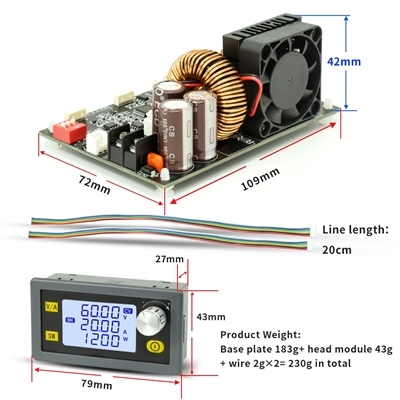

Kich Thước	79 x 43 x 27mm , 179 x 472 x 42mm

Type:6020L Set,6020L Baseboard(optioanl)
Input voltage: 6.0~70V
Output voltage: 0.0~60V
Output current: 0-20.00A
Output power: 0~1200W
Input-voltage measurement resolution: 0.01V
Output-voltage setting measurement resolution: 0.01V
Current setting measurement resolution: 0.01A
External temperature protection: 0-110℃, closed by default
Input overvoltage protection: 71V default
Input undervoltage protection: 4.8-71V adjustable default 4.8V
Output overvoltage protection: 65V Default: 65V
Output overcurrent protection: 0-22A, default 22A
Output over power protection: 1250W Default: 1250W
Over temperature protection: 60-110℃, 95℃ by default
Time-out protection: 0-100H, adjustable and closed by default
Overcapacity protection: 0~9999AH is adjustable and closed by default
Super energy-protection: 0~9999WH, adjustable and closed by default
