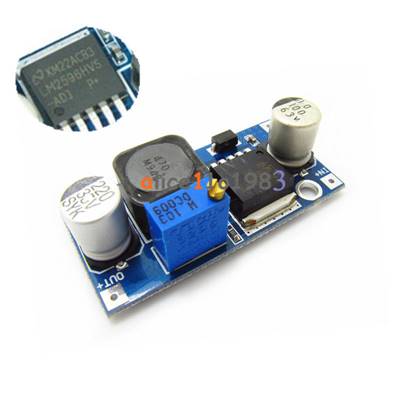

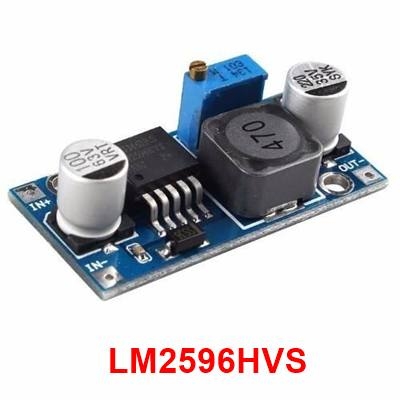

Module LM2596HVS

Giá: 60.000₫ Còn hàng

LM2596HVS DC-DC Adjustable Step Down Power Supply Module

LM2596HVS DC-DC Adjustable Step Down Power Supply Module
Input voltage: 4.5-60V
Output voltage: 1.5-35V(Adjustable)
Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)
Switching Frequency: 150KHz
Module Properties: Non-isolated step-down module (buck)
Short Circuit Protection: Current limiting, since the recovery
Operating Temperature: Industrial grade (-40  to +85 ) (output power 10W or less)
Dimension: 43*20*14mm (L*W*H)
