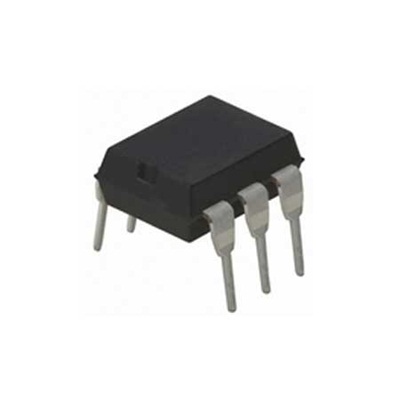

MOC3020 Dip Lite-On

OPTOISOLATOR 5KV TRIAC 6DIP,

Optoisolators - Triac, SCR Output
Packaging      Tube
Output Type    Triac
Zero Crossing Circuit    No
Number of Channels    1
Voltage - Isolation    5000Vrms
Voltage - Off State    400V
Static dV/dt (Min)    1kV/µs
Current - LED Trigger (Ift) (Max)    30mA
Current - On State (It (RMS)) (Max)    -
Current - Hold (Ih)    250µA (Typ)
Turn On Time    -
Voltage - Forward (Vf) (Typ)    1.15V
Current - DC Forward (If) (Max)    50mA
Operating Temperature    -40°C ~ 100°C
Mounting Type    Through Hole
Package /     6-DIP (0.300", 7.62mm)

   data sheet
