Mạch Hạ Áp ZS-PD8 1.25-36V 8A

110.000₫ Giá cũ:

ZS-PD8 Step Down Power Module 1.25-36V - 8A ( Mạch Hạ Áp ZS-PD8 1.25-36V 8A)

Gọi ngay 0932 762514 để được giải đáp mọi thắc mắc

Thanh Toán Tiền mặt Hoặc Chuyển Khoản

Giao Hàng Theo Yêu Cầu

Đặt Hàng Theo Yêu Cầu

Thông tin sản phẩm
Hướng dẫn

Loại	Mạch Hạ Áp ZS-PD8 1.25-36V 8A
Điện Áp Vào	5V-40VDC
Điện Áp Ra	1.25-36VDC, Có Thể Điều Chỉnh
Dòng Ngõ Ra	8A
Hiệu Suất Chuyển Đổi	95%
Công Suất	160W
Tần Số	180KHz
Kich Thước PCB	70mm* 39mm* 31mm

DC-DC Module Power Supply 160W Input voltage: 5-40V Output voltage: 1.25-36V - 8A
Type: Non-isolated buck module (BUCK)
Input voltage: 5-40V (limit 40V please leave margin)
Output voltage: 1.25-36V continuously adjustable
Output current: Rated 8A (current size and differential pressure temperature are associated with high current when the chip overheating automatically dropping in the general ambient temperature natural cooling current can be stabilized at 5-6A work to enhance the heat for a long time to work 8A)
Output power: natural cooling power 80W to strengthen the heat up to 160W
Operating temperature: -40 ~ +85 degrees
Operating frequency: 180KHz
conversion efficiency: up to 95% (efficiency and input, output voltage, current, pressure related)
Short circuit protection: Yes (short circuit risk, please try not to short circuit)
over-temperature protection: there (after the temperature automatically reduce the output)
Input reverse polarity protection: Yes (please do not reverse for a long time)
Transient pulse overvoltage protection: Yes (overvoltage protection voltage 40.5V)

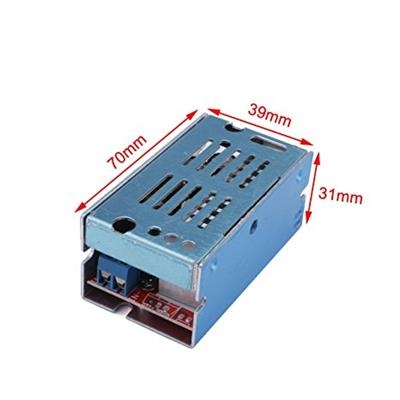

aluminum shell size: 70MM * 39MM * 31MM
