Mạch Hạ Áp MPPT DC 6-36V ra 1.25-32V 5A

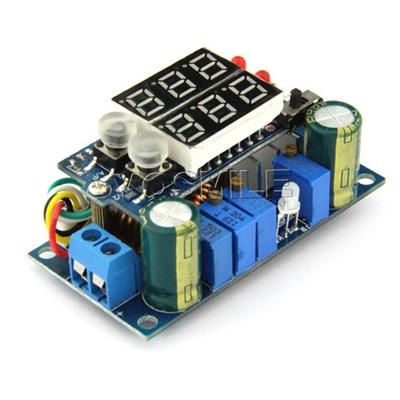

DC-DC Buck Converter 6-36V to 1.25-32V 5A Constant Current Voltage MPPT Solar Controller with LED Voltmeter Ammeter Power Display for Charging Battery Car Power Supply
Module property: Non-isolated buck module (BUCK)
Input voltage: 6-36V
Output voltage:1.25-32V continuously adjustable (default 5V)
MPPT voltage setting range: 6-36V
Output current range: 0.05-5A (default 3A)
Turn lights output range: 0.01-5A (default 0.3A)
Operating temperature: -40 to + 85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 95% (efficiency is related with input voltate,output voltage,current and voltage difference)
Short circuit protection: Yes
Over temperature protection:Yes (automatically shut off the output after overtemperature)
Input reverse polarity protection: None, (if necessary, please add a diode)
Output anti-irrigation protection: None, the output must be connected to the battery plus blocking diode, otherwise it will burn the module!

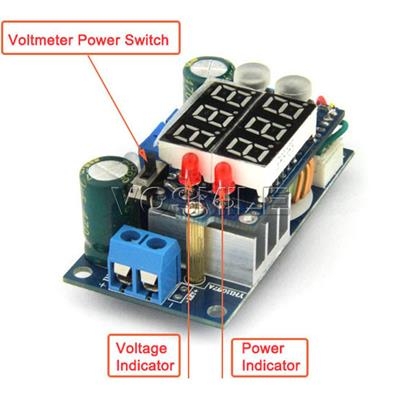

Charge indicator: light red when charging, full of green light. Turn light detection mode for current. In the use of solar panels powered, the sun is very small charge current, lower than the current, the same will be a green light, but this time is not full, please pay attention to distinguish. For live header will more directly see the charging current.
Installation: 3mm screws(4)
Size:60*31*22 mm(L * W * H)
