HTC-TECH Module HTC Nano
Giá: 126.000₫ Còn hàng

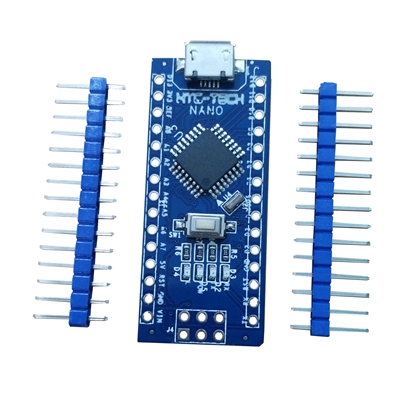

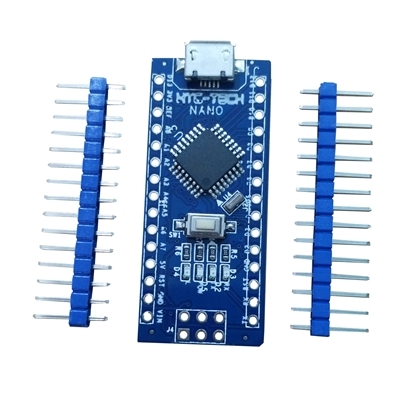

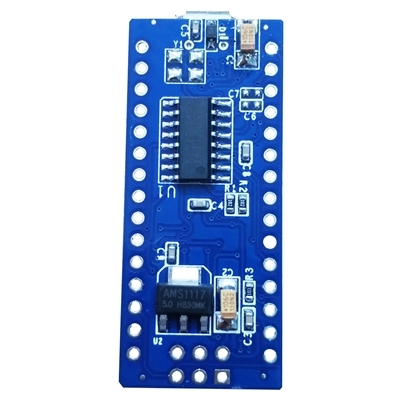

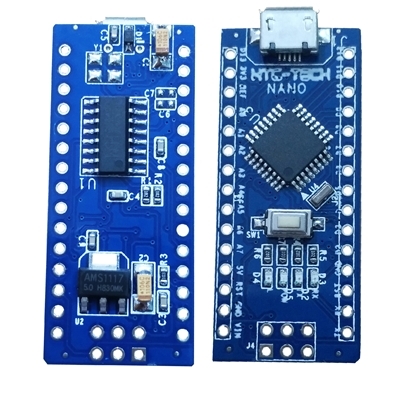

HTC-TECH Module HTC Nano Microcontroller ATmega328
HTC-TECH Nano
Microcontroller: Atmel ATmega328
Driver: CH340
Operating Voltage (logic level): 5 V
Input Voltage (recommended): 7-9V
Input Voltage (limits): 5-12V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8 Channel 10 Bit
DC Current per I/O Pin: 40 mA
Flash Memory: 32 KB (of which 2KB used by bootloader)
SRAM: 2 KB
EEPROM: 1 KB
Clock Speed: 16 MHz
Dimensions: 18.54x43.18mm
Ứng dụng sản phẩm
