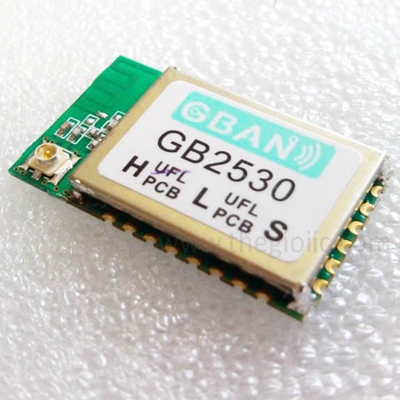

Mạch Thu Phát B-ZIGBEE GB2530-HPCB

B-ZIGBEE RF module series GB2530-H High Power Zigbee Module
RF/layout
Adapt to the 2.4-GHz IEEE 802.15.4 RF transceiver
High receiver sensitivity and robustness
Programmable output power up to 21 dBm
Only power Can communicate
16-mm28-mm Stamps package
Suitable for system configuration in line with the worldwide radio frequency
Rate regulations: ETSI EN 300 328 and EN 300440
(Europe), FCC CFR47 Part 15 (U.S.)
And ARIB STD-T-66 (Japan)
Low power consumption
Active Mode RX (CPU Idle): 27 mA
Active Mode TX 20dBm(CPU Idle):166mA
Power mode 1 (4 s wake-up): 0.2 mA
Power mode 2(Sleep timer running): 1 A
Power mode 3 (external interrupt): 0.4 A
Wide supply voltage range (2 V-3.6 V)
Microcontrollers
Excellent performance and low power code prefetch function consumption of 8051 microcontroller core
32,64 -,128,256-KB system programmable flash
-8-KB RAM, has number holding capacity under variety of power supply
