DC-DC 10-32V To 35V 150W
Giá: 45.000₫ Còn hàng

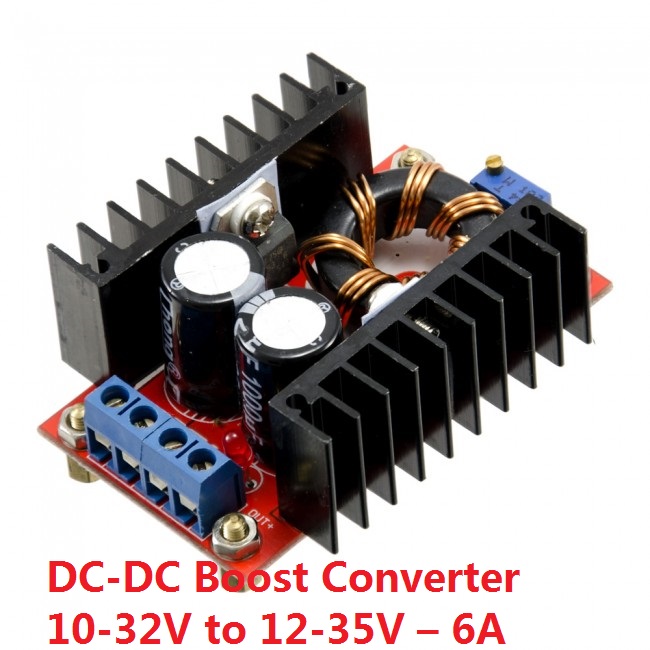

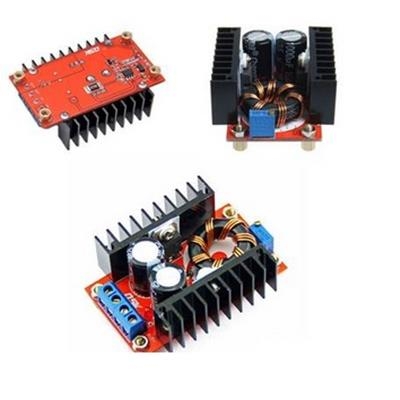

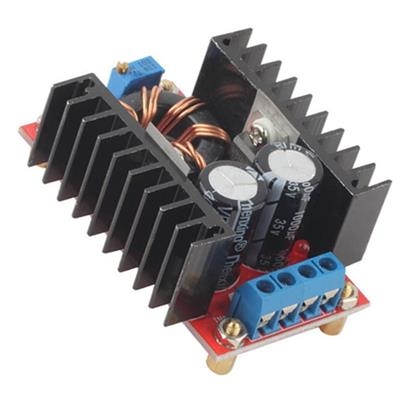

150W DC-DC Boost Converter 10-32V to 12-35V Output Current: 6A MAX
DC-DC Boost Converter Specifications:
Input Voltage: 10v – 32v DC
Output Voltage: 12v – 35v DC
Output Current: 6A MAX
Input Current: 10A (MAX)
Output Ripple: 2% MAX
Working Temperature: Industrial – 40C to +85C
Full-Load temperature: 45 degrees.
No-load current: 25mA typical.
Voltage regulation: ± 0.5%.
Load regulation: ± 0.5%.
Dynamic response speed: 200uS 5%.
Ứng dụng sản phẩm
