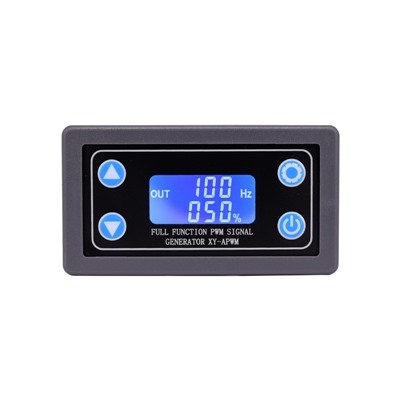

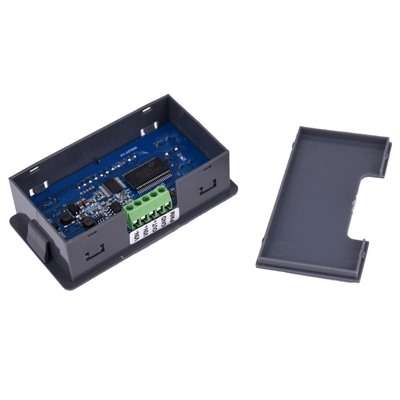

Mạch Phát Xung Vuông PWM  XY-APWM

Square Wave Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module
1>.LCD high definition display
    2>.Support amplitude adjustment
    3>.Support frequency adjustment
    4>.Support duty cycle adjustment
    5>.High precision detection
    6>.Support power-down memory function
    7>.1-Channel PWM output
    8>.Dual Precision Mode
    9>.Supports lock function to avoid misoperation
    10>.Support enable output
3.Parameters:
    1>.Product name: XY-APWM1 PWM Signal Generator
    2>.Model: XY-APWM1

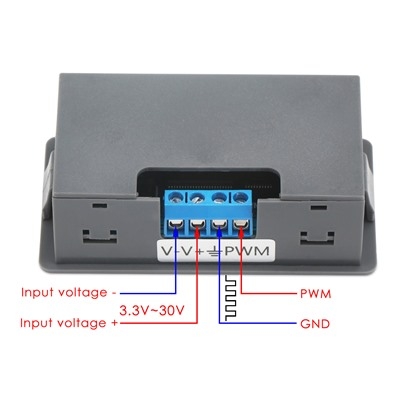

    3>.Work Voltage:DC 3.5V-12V
    4>.Frequency range(Normal mode):1Hz~150KHz
    5>.Frequency range(Precise mode):1Hz~15KHz
    6>.Frequency accuracy:2%
    7>.Duty cycle accuracy:1% at Normal mode
    8>.Duty cycle accuracy:0.1% at Precise mode
    9>.Duty cycle range:0.00%-100%
    10>.Output Current:About 5-30mA
    11>.Output amplitude:Adjustable
    12>.Work Temperature:-40℃~85℃
    13>.Work Humidity:0%~95%RH
    14>.Size:57*35*9.5mm
4.Set Work Mode:
    1>.There is two work mode so it have two frequency range.
    2>.Normal mode:Frequency range 1Hz~150KHz.Duty cycle range 000%-100%. Duty cycle accuracy 1%.Output amplitude range is DC 1V~24V.
    3>.Precise mode:Frequency range 1Hz~15KHz.Duty cycle range 0.00%-100%.Duty cycle accuracy 0.1%.Output amplitude range is DC 1V~24V.
    4>.Keep press button ‘STOP’ for 5 second to switch to Normal mode and Precise mode.

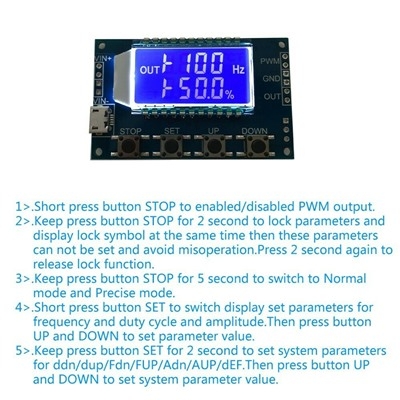

5.Button description:
    1>.Long press means need keep press for more than 3second.
    2>.Short press button ‘STOP’ to enabled/disabled PWM output.
    3>.Keep press button ‘STOP’ for 2 second to lock parameters and display lock symbol at the same time then these parameters can not be set and avoid misoperation.Press 2 second again to release lock function.
    4>.Keep press button ‘STOP’ for 5 second to switch to Normal mode and Precise mode.
    5>.Short press button ‘SET’ to switch display set parameters for frequency and duty cycle and amplitude.Then press button ‘UP’ and ‘DOWN’ to set parameter value.
    6>.Keep press button ‘SET’ for 2 second to set system parameters for ddn/dup/Fdn/FUP/Adn/AUP/dEF.Then press button ‘UP’ and ‘DOWN’ to set system parameter value.
6.Use steps:
    1>.Connect to power supply.
    2>.Set Normal mode and Precise mode.
    3>.Set parameters for frequency and duty cycle and amplitude.
    4>.Set system parameters for ddn/dup/Fdn/FUP/Adn/AUP/dEF if need set.
    5>.Keep press ‘STOP’ for 2second to lock set parameters.
    6>.Test.
    7>.Press button ‘STOP’ to turn on or off PWM output.
    8>.Remove power and connect load to use module.
7.Application:
    1>.Square wave signal generator, generating square wave signal for experimental development
    2>.Used to generate a square wave signal that controls the motor driver
    3>.Generate adjustable pulses for use by the MCU
    4>.Dimmer
    5>.Speed governor
8.Note:
    1>.It’s 1-channel PWM output signals.
    2>.Its maximum output current is 30mA.Therefore it cannot directly drive high-power devices.
    3>.Please read use manual and description before use.
9.Package:
    1>.1pcs XY-APWM1 PWM Signal Generator
