CD4093BE

IC GATE NAND 4CH 2-INP 14-DIP,

Family    Logic - Gates and Inverters
Packaging      Tube
Logic Type    NAND Gate
Number of Circuits    4
Number of Inputs    2
Features    Schmitt Trigger
Voltage - Supply    3 V ~ 18 V
Current - Quiescent (Max)    4µA
Current - Output High, Low    3.4mA, 3.4mA
Logic Level - Low    0.9 V ~ 4 V
Logic Level - High    3.6 V ~ 10.8 V
Max Propagation Delay @ V, Max CL    130ns @ 15V, 50pF

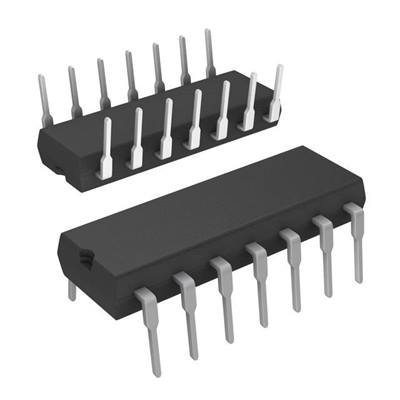

Package / 14-DIP (0.300", 7.62mm)

  data sheet
