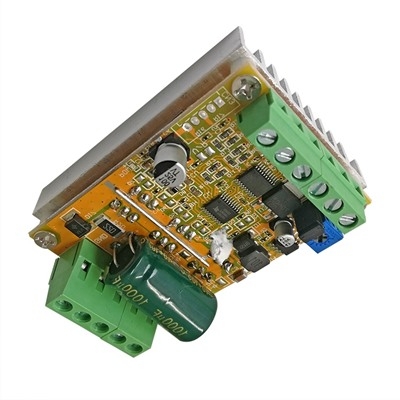

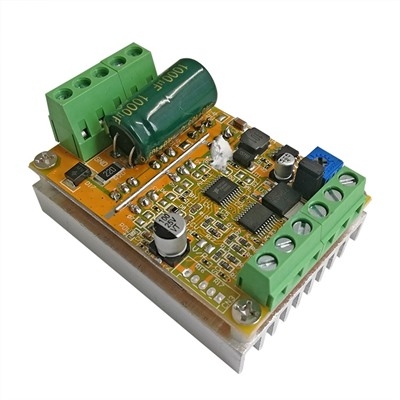

Mạch Điều Khiển Động Cơ 3 Pha 380W - ZS-X11F

Mạch Điều Khiển Động Cơ 3 Pha 380W - ZS-X11F

245.000₫ Giá cũ:

Mạch Điều Khiển Động Cơ 3 Pha 380W , - 3 Phases Brushless Motor Controller board(No/without Hall sensor) BLDC PWM PLC Driver Board DC 6-50V

Gọi ngay 0932 762514 để được giải đáp mọi thắc mắc

Thanh Toán Tiền mặt Hoặc Chuyển Khoản

Giao Hàng Theo Yêu Cầu

Đặt Hàng Theo Yêu Cầu

Thông tin sản phẩm
Hướng dẫn

Loại	Mạch Điều Khiển Động Cơ 3 Pha 380W - ZS-X11F
Điện Áp Hoạt Động	6-50Vdc
Dòng Điện Liên Tục	16A
Công Suất	380W
Tốc Độ Động Cơ	35000RPM
Kích Thước	63 x 45 x 31 mm

380w 3 Phases Brushless Motor Controller board(No/without Hall sensor) BLDC PWM PLC Driver Board DC 6-50V

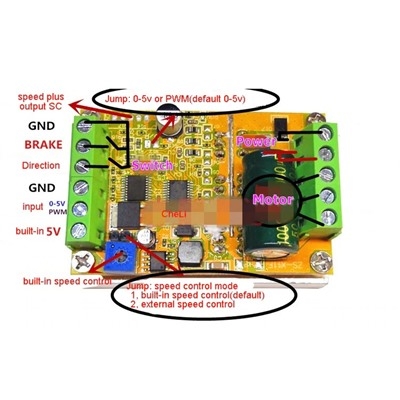

Interface Description:
1.U V W phase line output motor
2. 5V GND motherboard comes with power supply (current does not exceed 300MA)
3.VCC GND Main motor power supply (external DC power supply)
4.SC speed pulse signal output
5.DIR positive and negative control (lead external switch)
6.BRAKE brake control (lead external switch)
6.0-5V PWM speed control signal input (on-board potentiometer speed control can also be switched by jumper external 0-5V analog PWM duty cycle signal input speed)
Motherboard specifications:
Product Name: 380W brushless without Hall DC motor controller
Model: ZS-X11F
Working voltage: 6.5-50V
Drive current: rated 16A plus air cooling 30A
Maximum power: 380W
Overcurrent protection: none (external fuse required)
Stall protection: Yes (the current drops automatically after blocking)
Over temperature protection: Yes (temperature over 100 degrees, power drop by half)
Maximum speed: 224000 RPM (2-pole motor), 74000 RPM (6-pole motor), 40000 RPM (12-pole motor), 35000RPM (14-pole motor).
Product size: length 63MM* width 45MM* height 31MM
