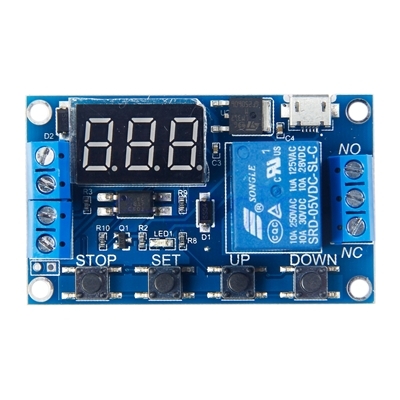

Mạch Tạo Độ Trễ Đóng Ngắt Relay 6-30V

Video Hướng dẫn

Click vào Đây

Product introduction:
1. Operating voltage: 6--30V
2. Trigger Signal Source: High Level Trigger (3.0 V-24 V), signal ground and system ground are not common, which can increase anti-interference abilit
system (short circuit can also connect with a ground common)
3. Output Capacity: can control no more than DC 30V 5A AC or 220 V devices 5A
4. Optocoupler Isolation: improve the anti-interference ability, after the parameter setting, it will memory forever
Warning: Relay contact is passive and electricity production; 1 channel has the control function on / off

Operation mode:
P1: After triggered signal, power relay on time OP, then turn off; within the OP period following operation:
1) P1.1: signal being triggered again is not effective
2) P1.2: signal being triggered again, start time again
3) P1.3: signal being triggered again, reset; disconnect relay, stop timing
P2: giving the trigger signal, the time after shutdown relay CL power relay OP time; then timing, turn off the relay
P3.1: give the trigger signal after the power relay on time OP, CL shutdown time relay; then operating cycle above cycle gaive signal again, shutdown relay stop timing; cycle times (LOP) can be set
P3.2: after connecting. no need to trigger signal, power relay on time OP, CL shutdown time relay; then the operating cycle above timea cycle (LOP) can be set
Q4: keeping the function of the signal; if there is no trigger signal, the time will be canceled, relay stay connected; when the signal disappears, timing OP turn off the relay; over time, if no signal again, the time is cleared
