Mạch MOSFET 25A 3D

45.000₫

25A MOSFET High Power Heated Bed Expansion Power Module MOS Tube For 3D Printer

Gọi ngay 0932 762514 để được giải đáp mọi thắc mắc

Thanh Toán Tiền mặt Hoặc Chuyển Khoản

Giao Hàng Theo Yêu Cầu

Đặt Hàng Theo Yêu Cầu

Thông tin sản phẩm
Hướng dẫn

Loại	Mạch MOSFET 25A 3D
Điện Áp Hoạt Động	12Vdc
Dòng Điện Liên Tục	25A
Công Suất
Điên Áp Ngõ Ra
Kích Thước

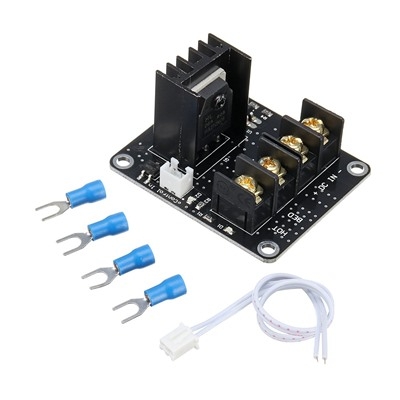

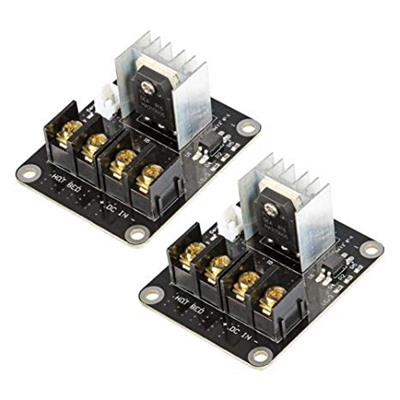

25A MOSFET High Power Heated Bed Expansion Power Module MOS Tube For 3D Printer

Mounting holes: 3.2mm diameter, for M3 screws
Max Current: 25A (Enhance heat dissipation) safe for prolonged times. Ensure active cooling of the heat sink.
Features:
-This high power module is a general add-on heated bed power expansion module for 3D printer. It can work with the Anet A8.
-The heat bed power module can be used in both Chitu motherboard and other open 3D printer motherboards.
-25A maximum current: This high power module helps your 3D printer equipped with the Chitu controller board (capable of max 15A) become even more powerful. With this add-on module to board lead the maximum current up to 25A.
-When using heated bed 3D printer for 12V power supply which may cause excessive current during times, with this module, it can well protect the connectors on the controller board from burning.
-This module is based on power MOSFET and will allow PID control of the heated bed (DC-DC Relays usually do not allow this).
