2.4 inch TFT LCD

Giá: 125.000₫ Còn hàng

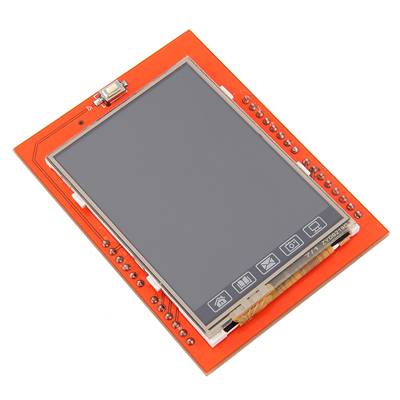

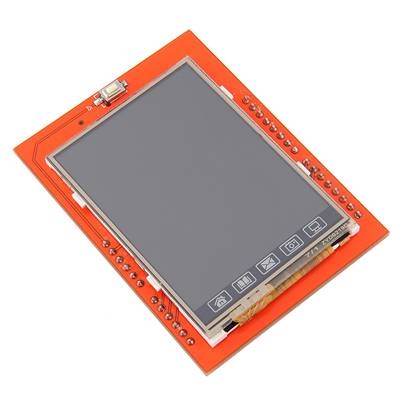

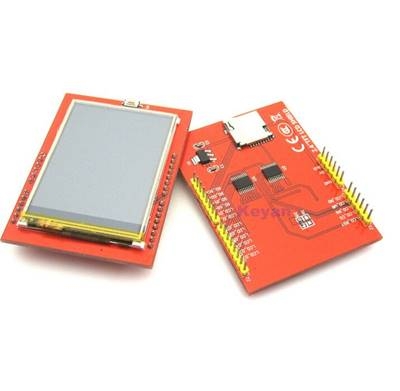

2.4 Inch TFT LCD Shield Touch Board Display Module For Arduino UNO

2.4 Inch TFT LCD Shield Touch Board Display Module For Arduino UNO
2.4″ diagonal LCD TFT display
240×320 resolution, 18-bit (262,000) color
SPFD5408 controller with built in video RAM buffer
8 bit digital interface, plus 4 control lines
Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the microSD
Works with any Arduino ‘328 or Mega (Leonardo not supported yet)
5V compatible! Use with 3.3V or 5V logic
Onboard 3.3V 300mA LDO regulator
4 white LED backlight. On by default but you can connect the transistor to a digital pin for backlight control
4-wire resistive touchscreen

Ứng dụng sản phẩm
