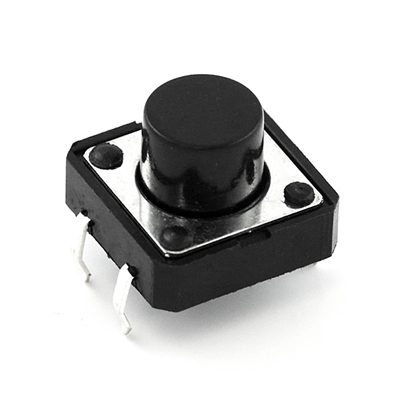

Tact switch 12A-18
Giá: 700₫ Còn hàng
Tactile Switch SPST-NO Top Actuated Through Hole, Height off PCB 18mm
Tactile Switch SPST-NO Top Actuated Through Hole
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, from Pins 18mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 12.00mm x 12.00mm
Illumination Non-Illuminated
Illumination Voltage (Nominal) -
Illumination Type, Color -
Operating Force 160gf
Ingress Protection -
Features Tactile Feedback
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 0.30mm
Mechanical Life 100,000 Cycles
