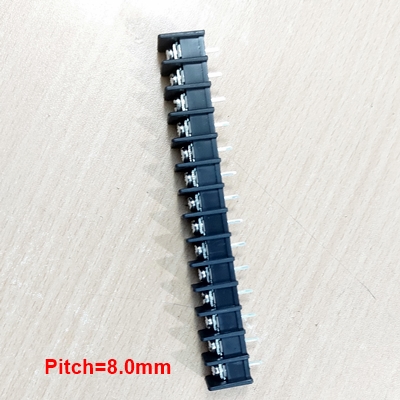

Barrier Terminal Block 14pin 8.0MM
Giá: 12.000₫ Còn hàng
Barrier Terminal Block Pitch: 8mm meters Poland: 14p
Pitch: 8.mm
Poles: 14P
Rated : 300V, 20A
Dielectric strength: AC2000V/1 minute
Insulation resistance: 1000mΩ min
Contact resistance: 20mΩ max.
Screw torque: 0.5Nm (4.4lb.in)
Wire range: 14-22AWG
Temp. range: -40°C - +105°C
Max soldering: +250C, 5s
Ứng dụng sản phẩm
