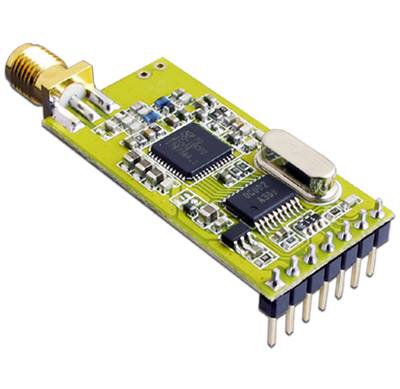

APC200A APC200A

Outdoor covers up to 1000meters(9600bps)
Frequency range 431-470MHz
0.2MHz channel spacing
ADI ADF7020 RFIC
Output power:20mW(adjustable)
Optional interface of UART/TTL,RS232,RS485
Outstanding receiver sensitivity -113dBm@9600bps
High efficiency forward error correction with interleaving encoding
GFSK modulation
Main parameters can be changed by APPCON RF module software
256Bytes data buffer
Power supply with voltage +3.3 ~ 5.5V
Power consumption:RX current:28mA,Tx current:40mA
Operating temperature:-30℃ ~ 85℃
.Size:39*19*7.0(mm)
