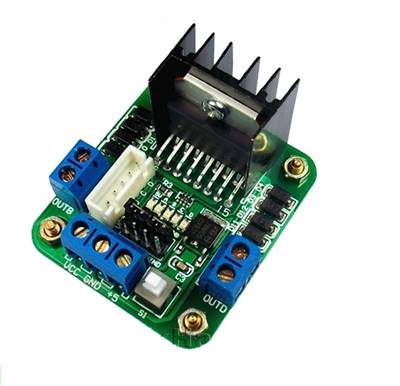

Mạch Điều Khiển 2 Động Cơ DC L298 -B

50.000₫ Giá cũ:

Mạch Điều Khiển 2 Động Cơ DC L298 -B, Drive a 2-phase bipolar stepper motor L298 dual H-Bridge chip

Gọi ngay 0932 762514 để được giải đáp mọi thắc mắc

Thanh Toán Tiền mặt Hoặc Chuyển Khoản

Giao Hàng Theo Yêu Cầu

Đặt Hàng Theo Yêu Cầu

Thông tin sản phẩm
Hướng dẫn

Loại	Mạch Điều Khiển 2 Động Cơ DC L298 -B
Điện Áp Hoạt Động	5-35Vdc
Dòng Điện Liên Tục	2A
Công Suất Cực Đại	25W
Chức Năng	Chỉnh Tốc Độ 2 Động Cơ DC
Kích Thước	48 x 43 x 33mm

driver chip: L298N dual H bridge DC motor drive chip
driving part of the terminal power supply range of Vs: +5V to +35V; if the need for the board to take electricity, the power supply range from Vs:+7V to +35V
driving part of the peak current Io:2A
ogic part of the terminal power supply range of Vss: +5V ~ +7V (can be used for the board +5V)
logical part of the working current range: 0 ~ 36mA
control signal input voltage range:
Low electrical level: -0.3V≤Vin≤1.5V
High electrical level: 2.3V≤Vin≤Vss
enable signal input voltage range:
Low electrical level: -0.3≤Vin≤1.5V (control signal.)
High electrical level: 2.3V≤Vin≤Vss (effective control signal)
maximum power: 20W (temperature T = 75 degrees)
Storage temperature: - 25 degrees to +130degrees
driver board size: 48mm*43mm*33mm (with a fixed cylinder and fin height)
drive plate weight: 33g
other extensions: control the direction of the light, the logic part of the board to take the electric interface.
